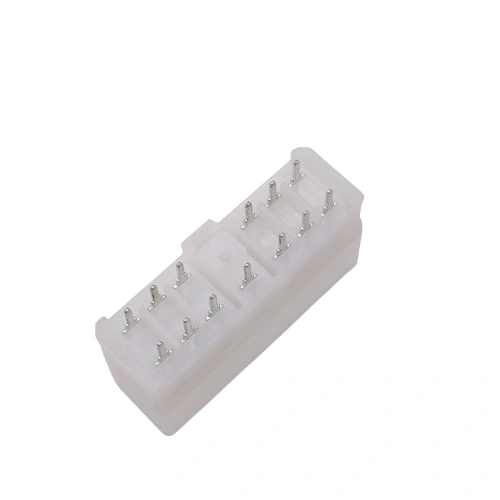

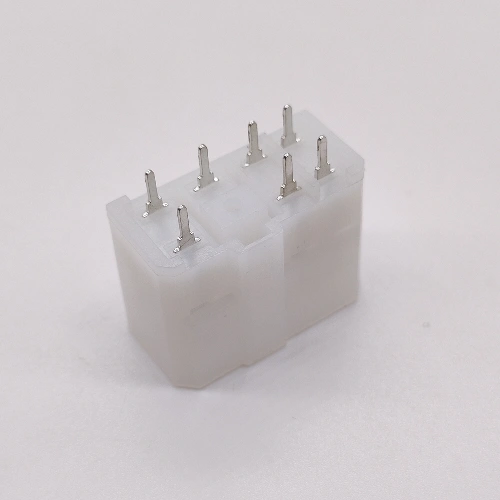

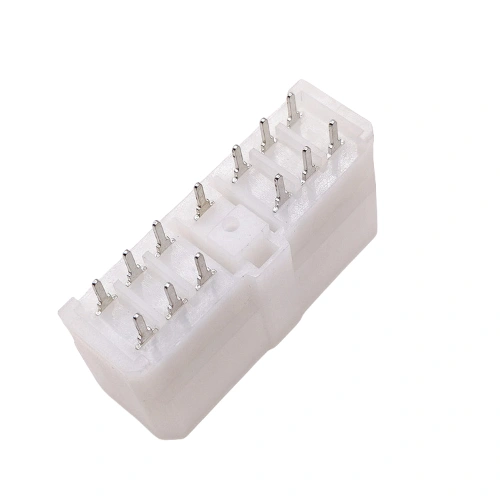

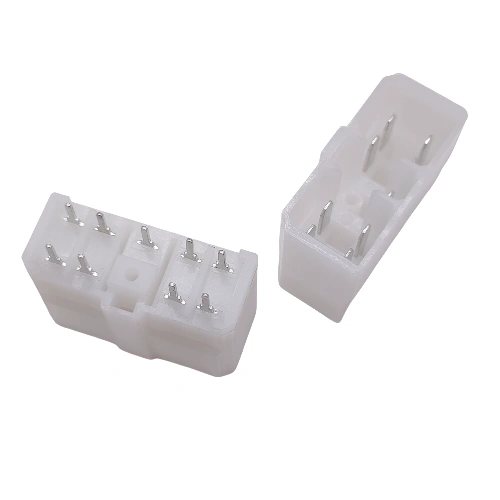

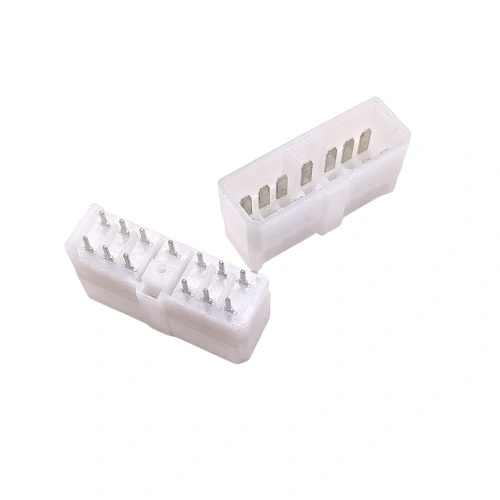

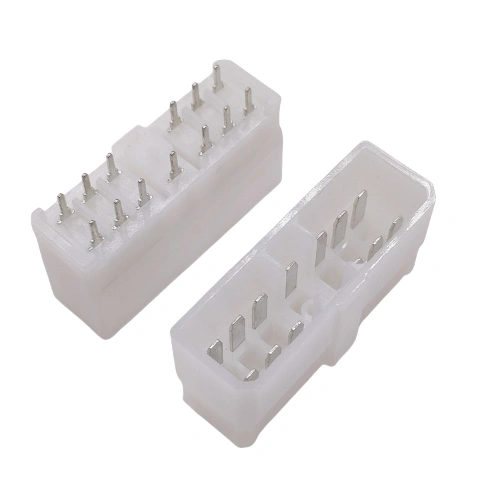

13PIN Automotive PCB Connector JHB00096

●Code:JHB00096

● Current Rating: 15A-18A

● 7.0mm Centerline 13P PCB Terminal Connector

Through Hole - Solder

PCB Mount Orientation : Vertica

PCB Connector Assembly Type : PCB Mount Receptacle

PCB Mount Orientation : Horizontal

Connector System :Wire-to-Board

lqm849538848@gmail.com

+86 13631516650

Contact Now

+ Inquire

Specifications

Documentation

Custom Automotive Electronic Connectors — Tailored to Your Needs.

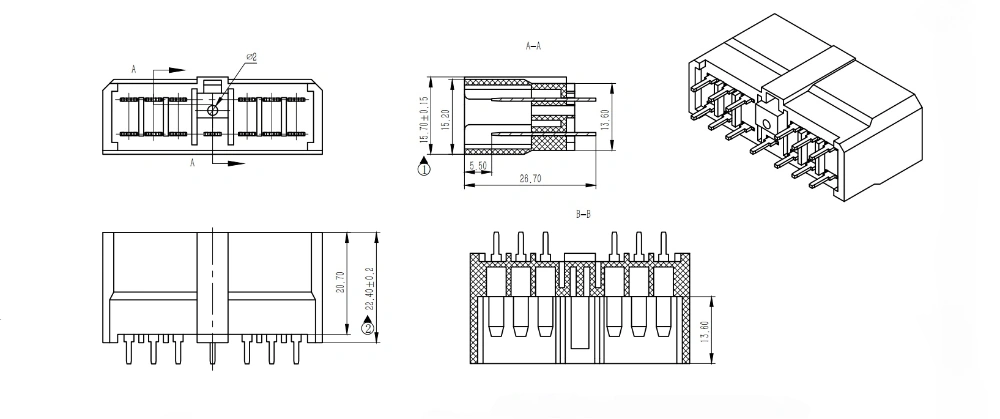

RECOMMENDED PCB LAYOUT

Name	13PIN PCB connector
Code	JHB00096
Material	PA6 GF/UL94-HB
Pitch	7.0mm
Insulation	100M min.
Poles	*163.00.6mm*
Temperature	-40-125°
Current Rating	15A-18A
Contact Rresistance	5mΩ(initial)
Metal	Nickel plated bottom tin plating

Customized services are available

There are many types of automotive electronic connectors, and each model has its own unique needs. Whether it is a traditional fuel vehicle or a new energy vehicle, we can provide you with the right connector. At the same time, Jinhua Electric Company attaches great importance to product quality and environmental protection, and has passed the IATF16949 quality management system and ISO14001 environmental management system, as well as the EU CE safety certification and ROHS environmental protection certification. Provide customized services, have a complete new product development process, including new product design communication, mold design and development, tooling and fixture design development, testing module design and development, and PPAP and other data submission, fully meet customer needs
