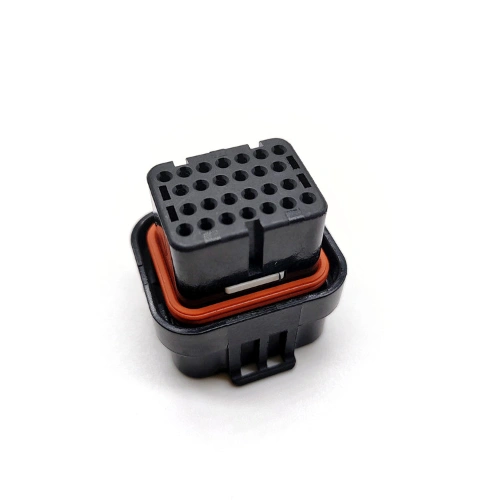

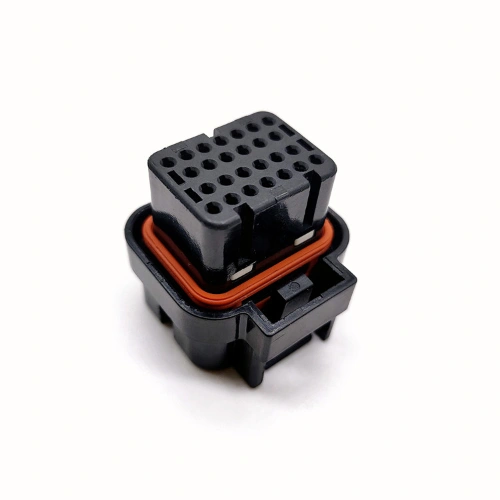

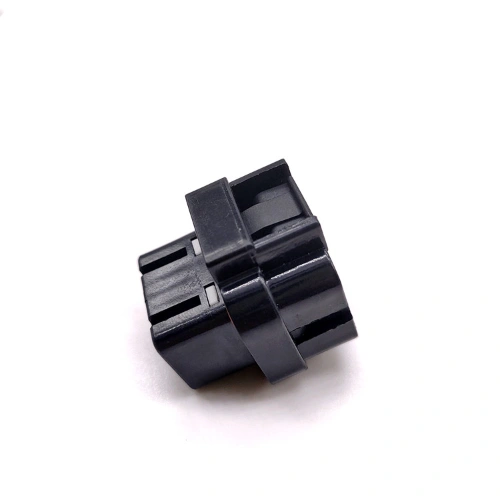

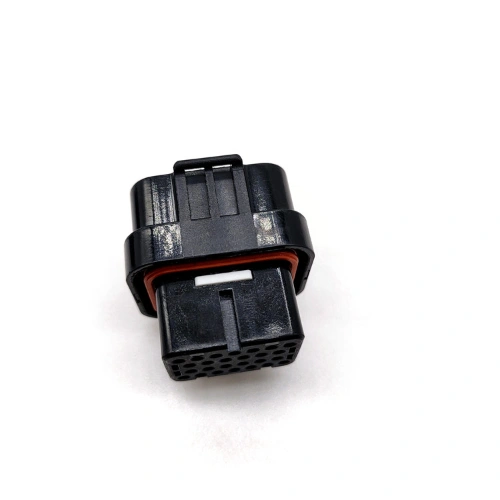

26PIN Automotive connector , Housings JHB00355

●26PIN Wire-to-board connector waterproof wiring harness connectors

● 26Position Housing

CODE:JHB00355

Housing Type : Plug

Connector System : Wire-to-Board

Centerline (Pitch) : 3mm

lqm849538848@gmail.com

+86 13631516650

Contact Now

+ Inquire

Specifications

Documentation

Wire-to-board connectors, automotive connector manufacturers

Name	26PIN connector
Code	3-1437290-7
Material	PBT GF/UL-94 HB
Pitch	3.00mm

Customized services are available

There are many types of automotive electronic connectors, and each model has its own unique needs. Whether it is a traditional fuel vehicle or a new energy vehicle, we can provide you with the right connector. At the same time, Jinhua Electric Company attaches great importance to product quality and environmental protection, and has passed the IATF16949 quality management system and ISO14001 environmental management system, as well as the EU CE safety certification and ROHS environmental protection certification. Provide customized services, have a complete new product development process, including new product design communication, mold design and development, tooling and fixture design development, testing module design and development, and PPAP and other data submission, fully meet customer needs

Packaging information

As a strong factory, our warehouse delivery system is a strong bridge to ensure that products reach customers smoothly. Standardized shelf arrangement, from raw materials to semi-finished products, to finished products, is clear at a glance, easy to quickly retrieve and retrieve. The moment of delivery is when we show efficient execution. Trained warehouse personnel work closely with the production line to initiate the shipping process as soon as a product rolls off the production line. Professional packaging protection, every step is rigorous and meticulous, just to let the product start in the best condition. Relying on long-term cooperation with high-quality logistics partners, we have built a diversified transportation channel, covering all aspects of road, rail and shipping, whether it is urgent order distribution in surrounding cities or international orders across oceans and seas, we can find the most suitable logistics solutions to ensure that the goods are delivered on time and in good condition.

Got Questions? Well, We've Got Answers.

Can your products carry the customer's logo?

The product can be brought with the customer's LOGO.

What is the pitch between the pins of the 12PIN Connector?

The pitch between the pins of our 12PIN Connector is 2.54mm. This standard pitch allows for easy mating with compatible devices and provides a compact yet reliable connection solution. It ensures proper alignment and electrical contact, facilitating the transmission of signals or power.

Does the 12PIN Connector support waterproofing?

Yes, our 12PIN Connector features a waterproof design. It has a rubber gasket and a sealed housing structure that can prevent water ingress, making it suitable for use in damp or wet environments. This waterproofing capability enhances the durability and reliability of the connector, protecting the internal circuitry and ensuring stable performance.

What is the maximum current capacity of the 12PIN Connector?

The maximum current capacity of our 12PIN Connector is 5A per pin. This high current-carrying capacity enables it to handle relatively large power loads, making it suitable for applications that require the transfer of significant amounts of electrical power, such as in some industrial control systems or power supply connections.
